What metal thicknesses can the VEVOR 130A MIG join?

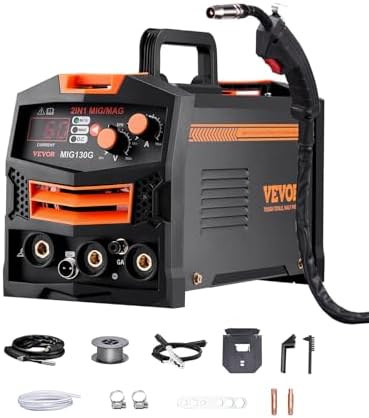

The VEVOR 130A Synergic MIG Welder can join metal thicknesses up to 8mm. This measurement represents the maximum material thickness the unit is designed to weld effectively while maintaining proper fusion.

The VEVOR 130A MIG provides a 130A output current, which is a standard for hobbyist-grade equipment. While 130A is sufficient for 8mm mild steel, it is important to note that 200 Amps is the threshold where a welder can reliably penetrate 1/4-inch thick mild steel. Because this unit sits below that threshold, you should expect it to be best suited for thinner materials or smaller projects rather than heavy structural fabrication. We included this model in our comparison because of its synergic control technology, which automatically matches current and wire feed speed based on your chosen voltage and wire thickness. To avoid burn-through on thin sheets, you should use the 0.03″ (0.8mm) wire, while the 0.04″ (1.0mm) wire provides more heat for thicker plates. For the cleanest results on different metals, you must verify the specific shielding gas mixture required in the manual, as using the wrong gas can cause porosity or poor aesthetics on larger surface areas. Additionally, since thick metal requires longer weld passes, you should check the manufacturer’s support page for the specific duty cycle to ensure the machine does not trigger a thermal shutdown mid-job.

What to Check Before Buying the VEVOR 130A Synergic MIG Welder

When selecting a gas metal arc welder—a machine that uses a wire feed and shielding gas to fuse metal—the thickness of the material you intend to join determines whether the machine can provide enough heat for a full-penetration weld or will only produce a surface bead.

• Verify if the 130A output current provides enough amperage for your specific project’s penetration requirements.
• Confirm the required shielding gas mixture for the specific metal you are joining, such as mild steel or stainless steel.
• Check the duty cycle rating to ensure the machine can handle continuous welding on thicker plates without overheating.
• Determine if the gas flow rate is sufficient for your surface area to prevent pitted welds.
• Ensure the synergic control settings correctly adjust the voltage-to-speed ratio for your specific wire diameter.

Comparing the VEVOR 130A MIG to Other Options

The VEVOR 130A MIG serves as a compact and lightweight entry point into MIG welding, featuring a large digital display and dual-mode gas and gasless flux core capabilities. If you are a hobbyist working on repairs, furniture, or thin-gauge sheet metal, this machine provides the necessary versatility for various materials like cast iron and square pipes. However, if your work requires frequent welding of heavy structural beams or industrial-grade plates, you should look for a machine with a higher amperage rating. Users who need to consistently weld material thicker than 8mm or who require a higher duty cycle for heavy industrial use will find more success with larger, more powerful units that exceed the 130A power limit.

If you are working in a home garage, you can verify if the VEVOR 110V model works on standard outlets.

If you primarily work with mild steel, stainless steel, or thin-gauge tubing for home projects, the VEVOR 130A Synergic MIG Welder is a suitable choice. For those requiring heavy-duty industrial penetration on thick plates, you should consider a higher-amperage welding system.
